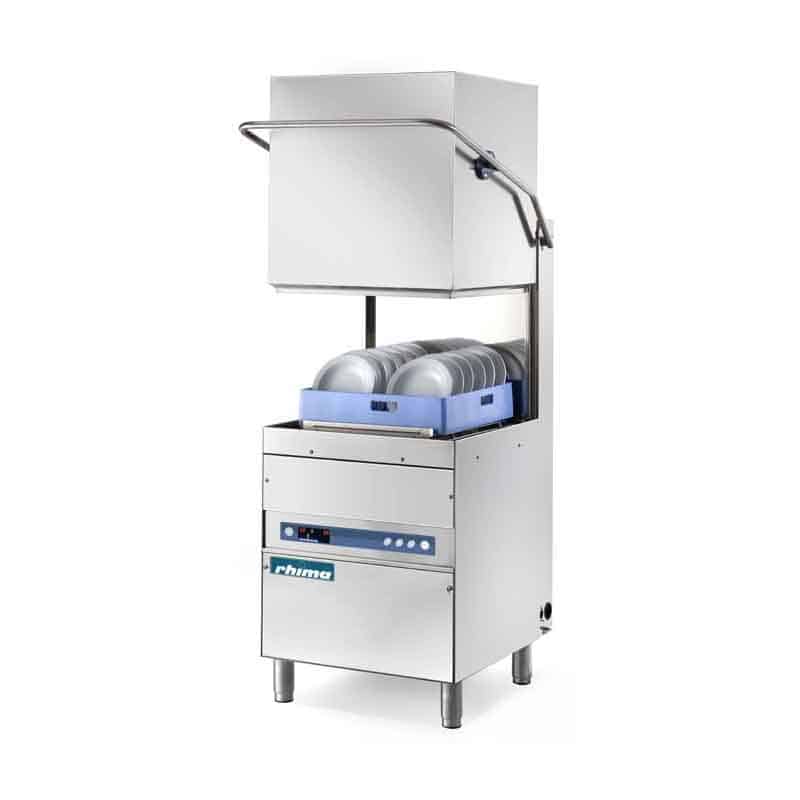

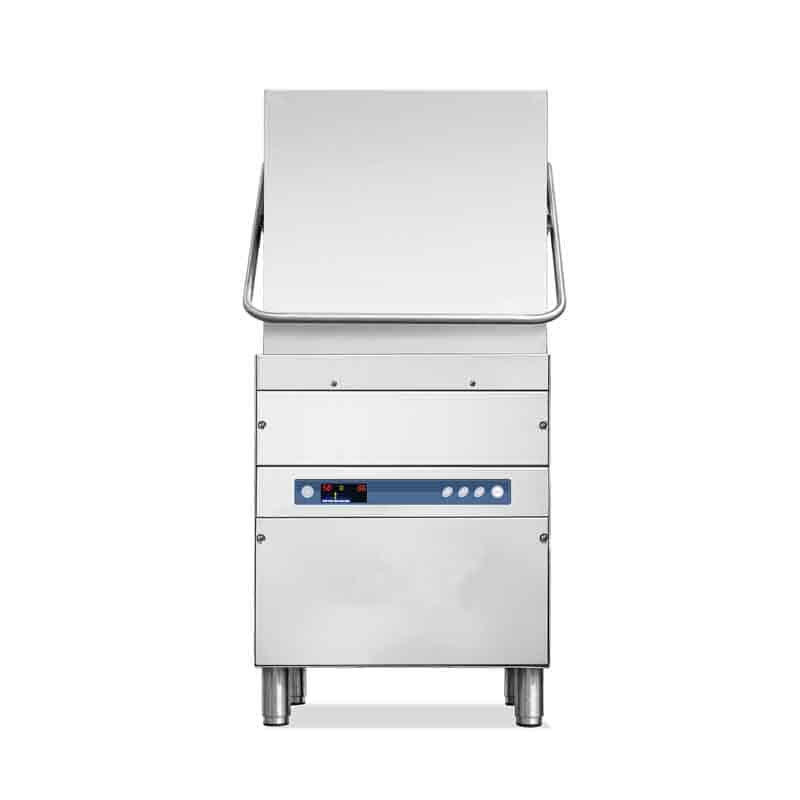

RH-50 pass through dishwasher

The Rhima RH-50 pass through dishwasher ( previously known as the HT-11 pass through dishwasher ) is a workhorse and has the same washing power as the RU-50 underbench commercial dishwasher, but due to pass through concept it has a higher capacity. The Rhima RH-50 pass through is available with a variety of standard or custom built benches to suit every operation.

Benefits
  • Hood operated start/stop functions which means that if you push the handle down the machine starts its cycle and if you lift the handle up, the machine stops its cycle.
  • Easy to use soft touch panel that shows temperature and alarm errors
  • Thermostop which is a safety system that ensures the machine has reached the correct temperatures before completing the cycle in order to comply with HACCP guidelines
  • Door safety switch fitted so that the machine cannot be opened mid cycle
  • Built in rinse aid injector which means that the chemicals connected to the machine are automatically dosed and injected into the wash cycle of the machine
  • Easy to remove nozzles and filter for cleaning
  • The RH-50 comes with 4 scrap screens (similar to filters) that stop food or debris going down the drain which could cause blockages
  • Break tank system that stops the dirty water from leaking back into the clean wash water
  • Four cycles pre-set to 50/80/120 and 180 seconds
  • Low water consumption (approximately 2.8ltrs per cycle)
  • AISI304 Stainless Steel design
Specs
  • Power supply 415V
  • Total power 7.43 kW
  • Total current 3x16.6 amp
  • Wash tank capacity 30 ltr
  • Rinse water consumption (per cycle) 2.8 ltr
  • Rinsing temp (approx) 85 °C
  • Rack size 500 x 500 mm
  • Tallest washable dish 41cm
  • Weight (empty) 100kg
  • Water connection 3/4" hose
